Structure

The FTC Starter Kit V3.1 is the ultimate starting point for your team’s FIRST Tech Challenge season. Built based on feedback directly from teams, this kit is packed with essential REV DUO components you need to design, prototype, and compete...

REV 45mm U Channel has a 45mm x 45mm square profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsion strength is required. On the sides of the channel is the Extended Motion...

15mm Plastic Motion Brackets are compatible with the REV DUO System. Each bracket features a set of alignment ribs designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity.  The 15mm Plastic...

DUO L Beams are compatible with the REV DUO System and are a structural element for small load applications or as a supporting component on a larger load application. They are compact, lightweight, and provide more strength than a flat beam. Use them to...

DUO Flat Beams are compatible with the REV DUO System and are easy to use. Having an 8mm width, 3mm height, and 8mm hole pattern makes them perfect as a support for an upright or using them as a linkage.  Specifications Material: 6063...

These plastic 15mm Extrusion Slot Covers are ideal for making any machine look great!  COLOR  SKU  Red  REV-41-1633  White  REV-41-1634  Blue  REV-41-1635  Yellow  REV-41-1636  Green...

The U Channel Endcap spans between the two sides of U Channel to provide holes on multiple surfaces to fasten additional components to. Also, using the endcap is a great way to strengthen longer sections of U Channel that are experiencing high loads...

Make driving linear motion easy with the 22 Tooth Plastic Right Angle Rack Gear. Mount the rack gear to a slot in either the REV DUO Extrusion or REV DUO Channel while using any of the REV DUO Plastic Gears to drive motion. Specifications Module: 0...

Custom hinge system used to create compact, simple hinges using REV DUO 15mm Extrusion. Hinges come in left, right, and center pieces, and are attached together using standard M3 hardware. Specifications Hole Diameter: M3 clearance Hole Spacing:...

The REV Punch Tube is designed to enable teams to rapidly prototype ideas and build robots without some of the constraints generally associated with extrusion based construction. When paired with our Metric Step Drill (REV-49-1455) and 1/8in or 3.2mm...

This metal ball bearing mount bracket is used with the REV DUO System 15mm Extrusion. Version 2 brackets offer many improvements over our previous metal brackets, including holes on an 8mm grid that is compatible with many other building systems. This...

REV Polycarbonate Sheets are lightweight, clear, and impact-resistant plastic sheets for robot construction, prototyping, covers, guards, sponsor panels, intake surfaces, funnels, and other custom mechanisms. Polycarbonate is durable while still allowing...

12V Slim Battery Accessories help keep your REV 12V Slim Batteries securely mounted, charged, and ready to power your robot. This product family includes the Battery Holder Plate for mounting a REV 12V Battery, Control Hub, or Expansion Hub, as well as...

15mm Metal Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems.  Specifications Material: 6061 Aluminum Thickness: 2mm Mounting Holes: 3.4mm...

REV 45mm Flat Plate is a 45mm wide, bendable metal featuring the Extended Motion Pattern. This product is a piece that is 440mm long. The Extended Motion Pattern supports M3 hardware for attaching brackets, extrusion, and channel. Specifications ...

The REV M3 Nut Strip allows you to securely join plates and channels without the need for separate nuts. Simply thread bolts directly into the strip for fast and reliable assembly. Specifications Material: 6063 Aluminum Thread Pitch: M3 x 0.5...

15mm Metal Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems.  The 15mm Metal Bent Core Hex Motor Bracket V2 (REV-41-1433) is used to mount the...

15mm Plastic Brackets are compatible with the REV DUO System. Each bracket includes a set of alignment ribs designed to seat the bracket into the extrusion channel increasing joint alignment, strength, and rigidity. The 15mm Plastic Variable Angle...

Aluminum cubes that allow users to quickly create square assemblies using REV 15mm Extrusion. The cubes are machined from aluminum and feature holes sized to accept standard M3 hardware. 2 pieces of extrusion can be used to create flat assemblies, 3...

This 90 degree inside corner bracket (REV-41-1320-PK8) is used with the DUO Build System 15mm Extrusion. These plastic brackets have webbing to strengthen the corner and includes a set of alignment ribs designed to seat the bracket into the extrusion...

REV Building System also comes in a 15mm x 30mm square extrusion. The slots are designed to fit standard M3 hardware rather than expensive t-nuts. Use the 15mm x 30mm extrusion when more strength is needed for an application. For smaller applications the...

REV 45mm x 15mm C Channel has a 45mm x 15mm rectangular profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsional strength is required. The 45mm wide side of the channel...

UltraPlanetary Brackets are compatible with the REV DUO System. Each bracket includes holes on an 8mm grid that is compatible with many other building systems. The UltraPlanetary Outside Mounting Bracket (REV-41-1621) is used to...

REV has introduced MAXComposite in two thickness options, making this high performance material accessible to everyone. MAXComposite is designed for applications requiring strength, impact resistance, and abrasion resistance, all while being 25% lighter...

The Mecanum Drivetrain Kit V2 provides everything needed to build an omnidirectional drivetrain. Featuring Ultra 90 Degree Gearboxes, this kit positions the motors directly within the drive channels to maximize internal space for mechanisms and...

The M3 Standoff Bundle is perfect for raising one assembly above another or as linkages. Standoffs are also commonly used with REV C Channel to properly space the channel in order to allow chains or belts to fit inside. Use this bundle to...

The C Channel Bundle contains various lengths of 45mm x 15mm C Channel and is designed to work seamlessly with existing REV 15mm Extrusion. They can be used in locations where additional torsional strength is required. The 45mm wide side...

The U Channel Bundle contains multiple lengths of 45mm U Channel and is designed to work seamlessly with existing REV 15mm Extrusion. The U Channel Endcap and Tensioning Bushing allows users to fine tune their system when designing and...

REV 45mm x 15mm C Channel has a 45mm x 15mm rectangular profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsional strength is required. The 45mm wide side of the channel...

REV 45mm U Channel has a 45mm x 45mm square profile, and is designed to work seamlessly with existing REV 15mm Extrusion. It can be used in locations where additional torsion strength is required. On the sides of the channel is the Extended Motion...

This metal Hex Bearing Block is used with the REV DUO 15mm Extrusion and REV DUO Channel. A hex ball bearing is pre-pressed into the metal bracket. Specifications Material: Sintered Steel, Steel CAD & Drawings SKU-STP REV-41-1683 Onshape SKU-DR

When designing chain or belt driven system, the ability to adjust tension in the system is ideal. Using the Tensioning Bushing with REV DUO U Channel allows users to fine tune their system to find the optimum amount of tension for any application...

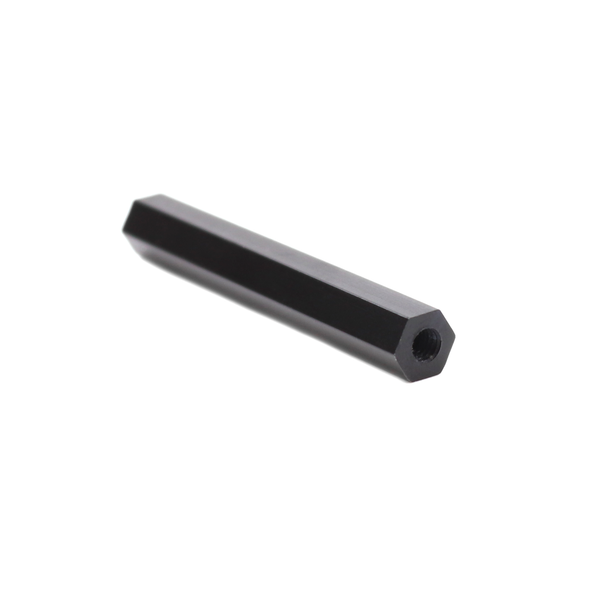

M3 standoffs are compatible with the REV DUO System and are perfect for raising one assembly above another or as linkages when paired with male ball joint rod ends (REV-49-1561). Specifications Material: 6063 Black Anodized Aluminum Thread...
