Electronics

The DUO Control Bundle offers basic FTC-legal control system components to get an existing robot up and running. Pair the DUO Control Bundle with the DUO EDU Mechanical Kit (REV-45-2708) to get started with the REV Robotics curriculum, Intro to Robotics...

Featuring the REV Driver Hub, an easy to use, dependable, and durable device designed for interfacing with the Control Hub. Featuring an Android operating system and built-in dual band Wi-Fi, this device makes getting your robot running easier than...

The REV USB PS4 Compatible Gamepad is compatible with both the REV DUO and REV ION Systems. Plug the REV Gamepad directly into a Driver Hub to enable feature rich control of your robot. Additionally, when plugged into a PC, it offers an Xbox...

The USB Female A to Micro USB Adapter allows you to use standard USB devices with micro 5-pin oriented electronics. Use this cable adapter to connect a Robot Controller phone to an Expansion Hub, or to connect a Driver's Station phone to a single...

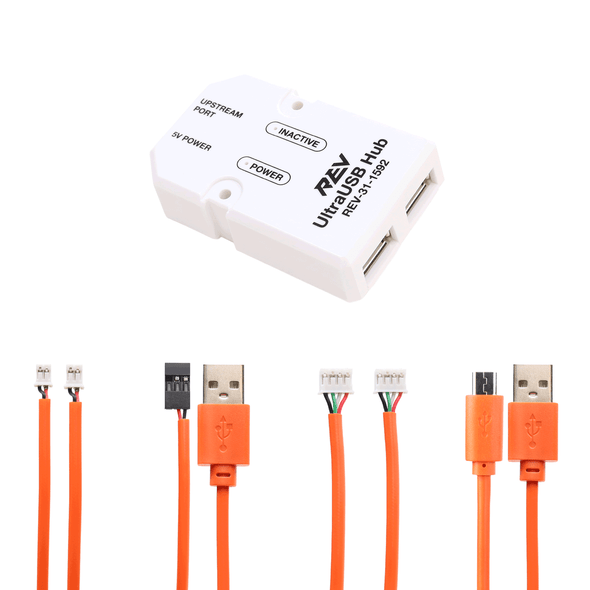

The UltraUSB Hub is designed specifically for use in competitive robotics, and gives you the ability to connect multiple USB devices to each other as well as replacing cables when damaged instead of needing to replace the whole hub. The UltraUSB Hub can...

The JST PH 6-pin to 4 Channel PWM Cable allows for seamless connection of the Through Bore Encoder into the FRC control system (roboRIO).

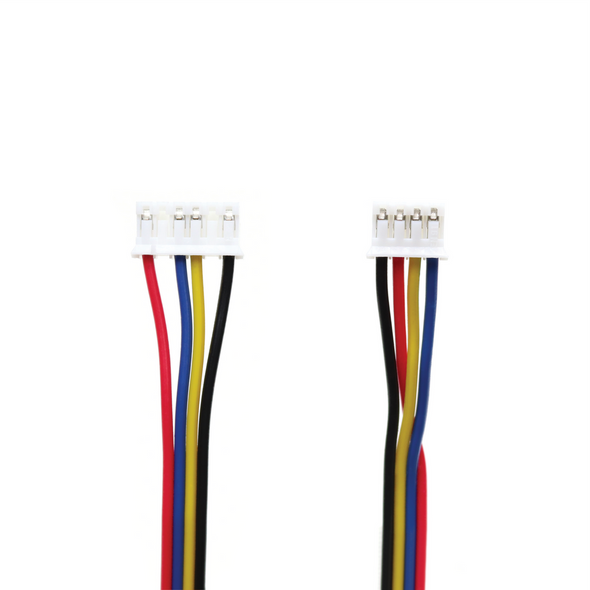

The JST PH 6-pin to JST PH 4-pin Cable allows for seamless connection of the Through Bore Encoder to the dedicated encoder ports on the FTC Control System (Expansion Hub or Control Hub). Also allows for the HD Hex Motor to...

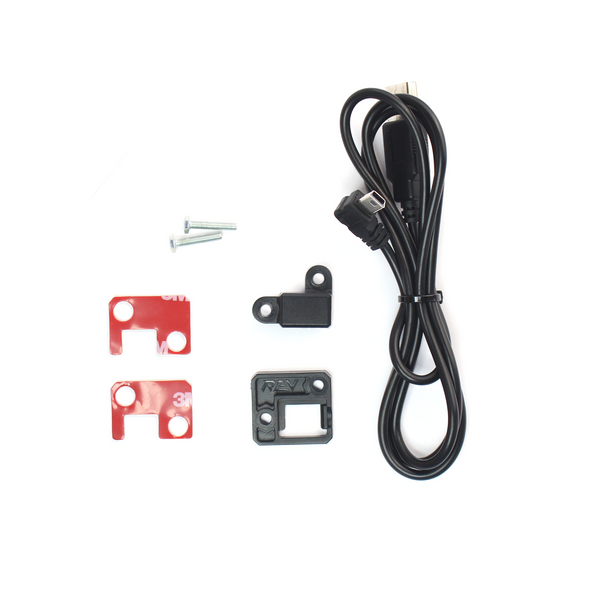

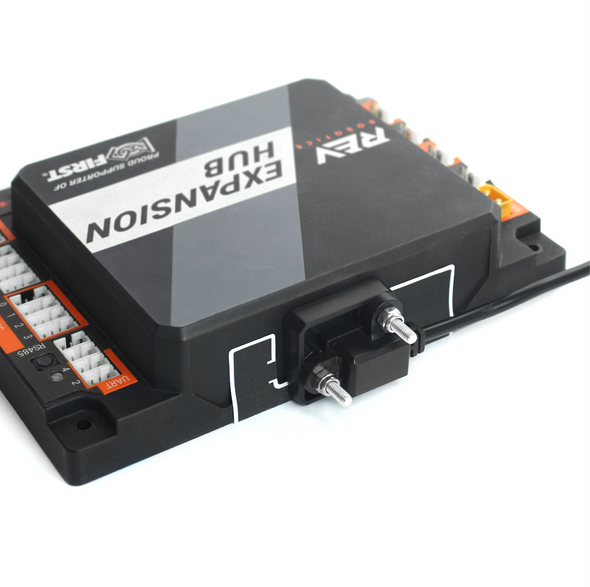

Reduce the number of USB disconnects between the Expansion Hub and your Robot Controller Phone with our USB Retention Mount. When used with the included right-angle USB cable, this mount provides a strong, reliable connection between the cable and the...

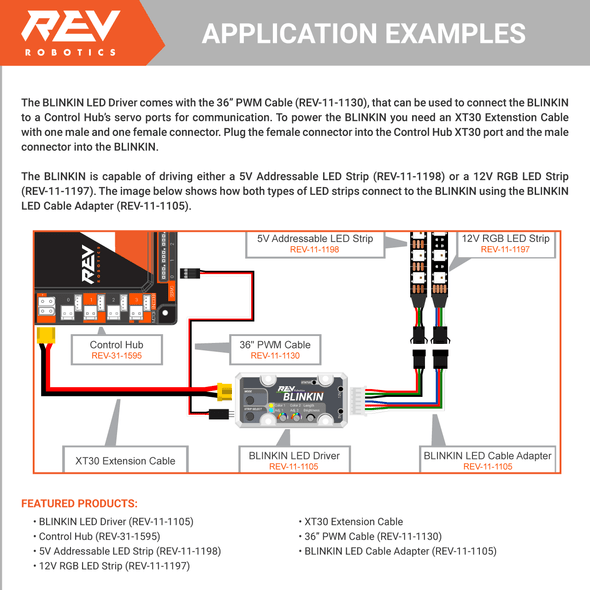

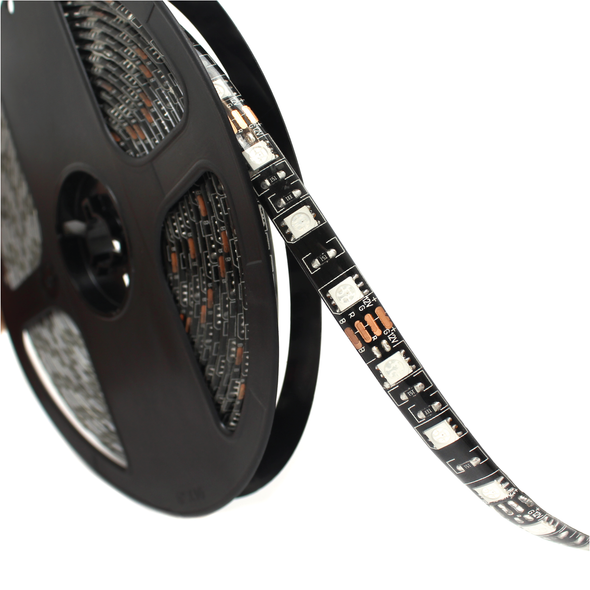

This 12V RGB LED Strip is compatible with the REV Blinkin LED Driver (REV-11-1105). Each LED on the strip is wired in parallel and actually contains three embedded LEDs; a red, green, and blue LED. Each color can be controlled separately to create any...

Use the Anderson Power Pole to 2-pin JST VH Adapter Cable to connect your existing motors to the REV Robotics Expansion Hub. Teams that already own and use the Anderson Powerpole Crimper may purchase JST VH 2-pin Motor Cables (REV-31-1413), cut cables in...

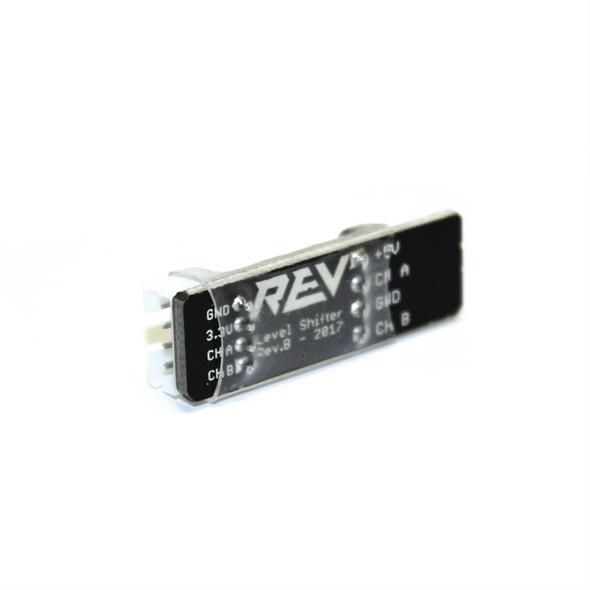

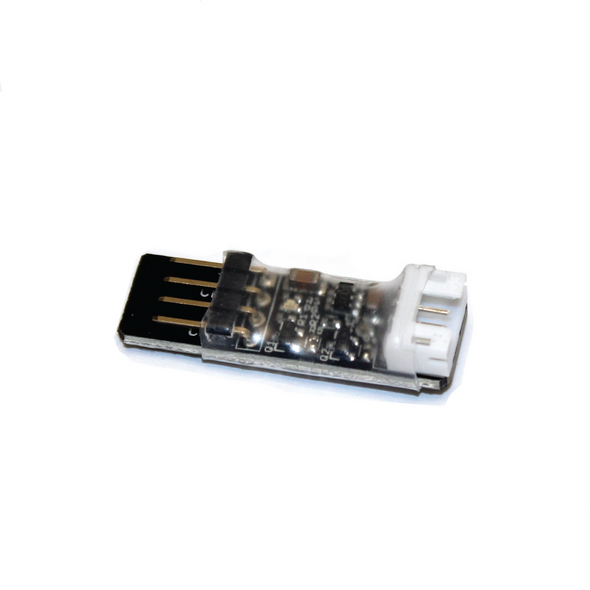

The REV Robotics Logic Level Converter is a circuit board which generates a 5V output from the 3.3V input and uses a MOSFET on each signal line to create a bidirectional communication appropriate for a variety of digital signals include I2C communication...

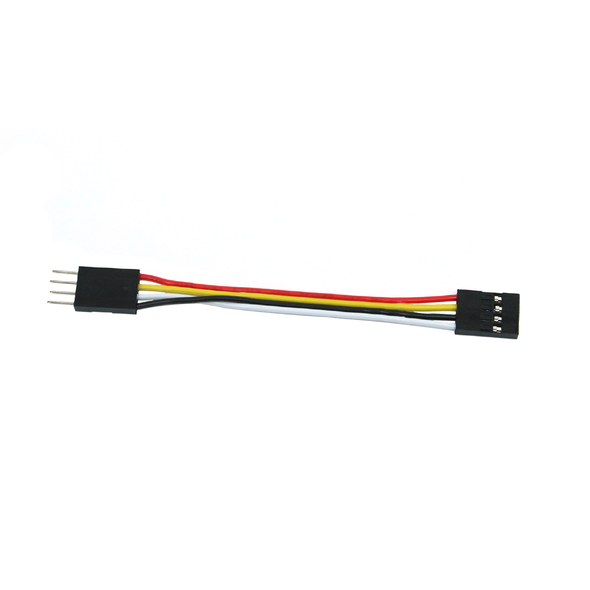

Cross over cable to convert the pin out from Modern Robotic's I2C sensors to work with the REV Robotics's Logic Level Converter.

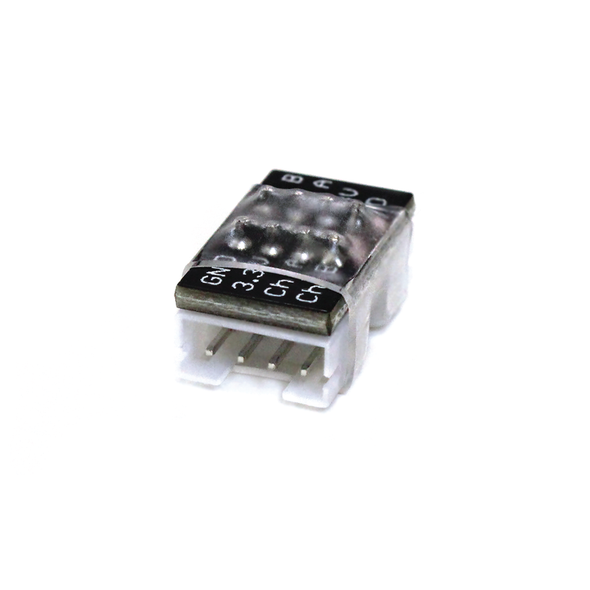

The JST PH 6-pin Joiner Boards (REV-11-1277-PK4)  are intended to be used with the JST PH 6-pin Extension Cables to extend the reach of your NEO Brushless Motor sensor cables. The JST VH 2-pin Joiner Board - 4 Pack (REV-31-1429-PK4) are small...

The USB-A to USB-C 2.0 Cable - 2m (REV-11-1232) is a longer version of the USB-A to USB-C cable included with the SPARK MAX Motor Controller and the Control Hub. Use this cable to connect your SPARK MAX or Control Hub to a standard computer from up to 2...

The 8cm long Anderson Power Pole style connector to Female XT30 adapter cable (REV-31-1385-PK20) is used to covert team-modified battery connectors to the new XT30 connector.  Teams that already own and use the Anderson Powerpole Crimper may...

12V Slim Battery Accessories help keep your REV 12V Slim Batteries securely mounted, charged, and ready to power your robot. This product family includes the Battery Holder Plate for mounting a REV 12V Battery, Control Hub, or Expansion Hub, as well as...

The 36in PWM Cable - 4 Pack (REV-11-1130-PK4) is an ideal servo extension, providing a 3ft reach for servos, sensors, and other PWM-controlled devices. Featuring a universal 3-pin design with a female connector on one end and a male connector on the...

These Ferrite Cable Clips help prevent electromagnetic interference (EMI). They can be clipped around USB and other data cables that are being used in electrically noisy environments.

The Digital LED Indicator is a LED signal module that is digitally controlled (active low) and offers three colors: red, green, and amber. The Digital LED Indicator is designed to directly interface with the DIO ports of the Expansion Hub or Control Hub...

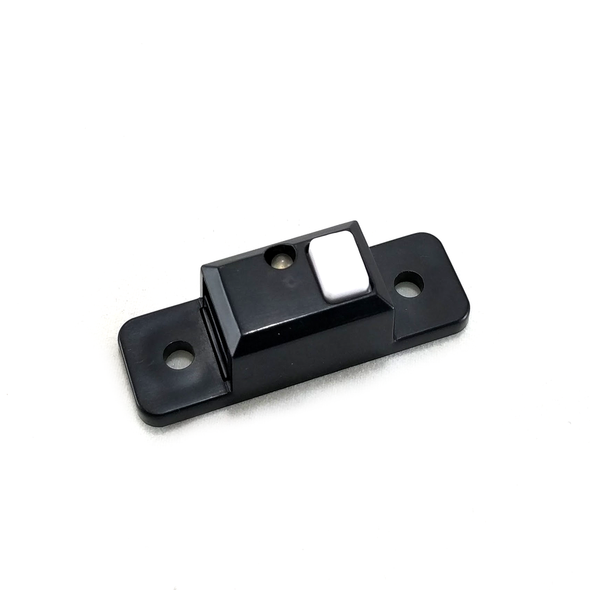

Touch sensor is best used for user input, but can also be used as a limit switch.  Configuration The REV Touch Sensor is a digital sensor that is wired to the N+1 channel on our standard 4-pin JST PH connector. In other words, the REV Expansion Hub...

Use these connectors to create your own custom length power wires. The XT30 Connector uses a solder cup instead of a crimping tool to connect the contact to a wire.

The analog and digital ports on the Control Hub and Expansion Hub combine two sensor inputs into one connector to save space. Single sensors plugged directly into these ports will work, but they will block access to the second input. The Sensor Splitter...

This 10K potentiometer can be used as an analog sensor with the Control Hub or Expansion Hub. This potentiometer has a 270 degree range of motion and can be mounted to any REV DUO brackets with the Motion Pattern, like the Motion Bracket. The...

The REV Through Bore Encoder V2 provides precise, reliable shaft position measurement with both incremental (ABI quadrature) and absolute (pulse-width) outputs. Its ½" hex through bore mounts easily within common FRC/FTC mechanisms, and the...

The 2-pin JST VH Cable is keyed and locking for improved reliability.  Expansion Hub 2-pin JST VH Connections: Motor Power Product Options  SKU   PRODUCT NAME   REV-31-1412-PK4   JST VH 2-pin Motor Cable -...

The 3-pin JST PH Cable is keyed and locking for improved reliability. Use this cable along with an XT30 Extension cable to connect a second REV Robotics Expansion Hub. Expansion Hub 3-pin JST PH Connections: RS485 - Daisy-chain communication to a second...

The XT30 Extension Cable is keyed and locking for improved reliability. Use this cable along with an 3-pin JST PH Cable to connect a second REV Robotics Expansion Hub. Expansion Hub XT30 Connections: Power, One Male and One Female XT30 Connector ...

The 4-pin JST PH Cable is keyed and locking for improved reliability.  Expansion Hub 4-pin JST PH Connections: Motor Encoder Digital Analog I2C Product Options  SKU   PRODUCT NAME   REV-31-1407-PK4   JST PH...

The REV Servo Hub is compatible with both the REV ION and REV DUO systems. Over a single communication interface it can provide advanced control of up to six (6) servos. This means that the Servo Hub needs no additional PWM cabling between it and your...

The 9-Axis IMU, compatible with the REV DUO System, is a high-performance inertial measurement unit (IMU) featuring the Bosch BNO055 smart sensor with an integrated accelerometer, gyroscope, and magnetometer. Developed to be plug and play with the REV...

Safely ground your robot's metal frame with this Resistive Grounding Strap. This strap has a built in 470Ω resistor to prevent high-current discharges while still minimizing the difference in charge between the robot electronics and the frame...

Replacement battery for the Driver Hub (REV-31-1596). Specifications 5040 mAH Li-ion battery  Documentation Driver Hub User's Manual Driver Hub Getting Started Guide

This sensor can be used to read and compare colors, and also has a built-in IR (optical) Proximity Sensor and white LED for active target lighting. Supports High Speed I2C Communication (400kHz) as well as auto increment register read which allows the...

The REV Robotics 2m Distance Sensor uses the ST Microelectronics VL53L0X Time-of-Flight (ToF) laser-ranging module to measure distances up to 2 meters with millimeter resolution. Unlike other ranging sensors that rely on the intensity of reflected light,...

The REV Robotics Magnetic Limit Switch is a three-sided active-low digital hall effect switch with three internal hall effect elements located on the top and sides of the sensor. The three elements are connected in parallel so that any one of them will...

Easily connect multiple devices to your robot battery with the XT30 Power Distribution Block. Allows for clean, compact wiring of all your XT30-connected devices. Compatible with: Expansion Hub, Blinkin LED Driver, SPARKmini, Servo Power Module, and many...

The REV Driver Hub is a compact mobile computing device designed for interfacing with the Control Hub (REV-31-1595). The Driver Hub was designed and built as an easy to use, dependable, and durable device for use in classroom and the competition. It...

The FTC Cable Bundle offers a plethora of major cables and other accessories for a variety of robot design needs, without having to sacrifice wiring best practices. Necessary cables, like the XT30 Extension Cable, come in two different...

The Servo Bundle is a one stop shop for getting up and running with the REV Smart Robot Servo. Included in this bundle are all the major electronic and structural accessories for programming, powering, and building using the Smart Robot Servo. Use...

The FTC Sensor Bundle offers an assortment of REV Sensors and sensor accessories to help your robot understand the world around it. Use this bundle to restock your existing sensor supply, or as a great starting point for a new FTC team. ...
