Bearings, Shafts, & Spacers

The Vortex Shaft - MAXSwerve Integrated Key is compatible with the REV ION System and gives users the ability to drive a MAXSwerve Module without the need for the MAXSwerve Key. This eliminates a potential point of failure in the MAXSwerve since the key...

The Vortex Shaft - 20DP Gear - 7T is compatible with the REV ION System and offers users the unique ability to achieve substantial gear reductions directly from the motor. This gear features a 7T 20DP design that is typically too small for an 8mm keyed...

The Vortex Shaft - Falcon Compatible Spline is compatible with the REV ION System and gives users the ability to drive components that have a falcon spline bore. *Falcon is not a REV trademark. Featuring a 1/2in hex section that drives the shaft and a...

The 8mm Vortex Shaft, compatible with the REV ION System, empowers you to utilize the NEO Vortex Brushless Motor with any 8mm keyed shaft component. This interchangeability also means that the NEO Vortex matches the output of a NEO Brushless Motor V1.1,...

The Vortex MAXPlanetary Input Kit is compatible with the REV ION System and gives users the ability to mount a MAXPlanetary Gearbox directly to your NEO Vortex Brushless Motor and SPARK Flex Motor Controller. Working seamlessly with the MAXPlanetary...

The MAXSpline Shaft - (REV-21-2520) is compatible with the REV ION System. The shaft is an extruded aluminum MAXSpline that provides a high strength alternative to 1/2in hex shaft that can interface with any REV ION System components with a...

MAXSpline Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. The MAXSpline Spacer with MAX Pattern features a 2in bolt circle pattern.  Specifications...

MAXSpline Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. Specifications Material: POM (Acetal/Delrin) OD: 1.50in Weights & Dimensions: ...

#10 Spacers are compatible with the REV ION System and are an accurate way to space structural components like plates, brackets, or tubes apart on #10 screws. Can also be used to to space motion components like gearboxes away from their mounting...

1/2in Rounded Hex Shafts are compatible with the REV ION System and are a ready-to-use length of hex shaft that have been cut to length and have the ends tapped. The ends are tapped #10-32 in order to accept a screw and washer or shaft collar. The 1/2in...

#10-32 Standoffs are compatible with the REV ION System and provide spacing for mounting key items on your robot. These standoffs are tapped on each end for a #10-32 thread and have a 3/8in flat to flat dimension, similar to a #10-32 nut. Specifications ...

The ION Bearing Bundle brings together the most-used bearings and bearing blocks in the ION Build System so you can spend less time sourcing parts and more time building. From high-speed shooters to rugged drivetrains to MAXSpline-based arms and pivots,...

The Bearing Retaining Plate is compatible with the REV ION System and is designed to securely hold bearings in place, ensuring that they remain stable and aligned during use. Made from high-quality, durable materials, the Bearing...

Eccentric bushings are used to hold our V-Groove Bearings (REV-29-1014) for linear motion applications. The hole is drilled off-center of the bearing axis so by rotating the bushing on its mounting bolt, the clearance between the wheel and track can...

Concentric bushings are used to hold our V-Groove Bearings (REV-29-1014) for linear motion applications. Used in conjunction with our Eccentric Bushing (REV-21-1029), the user can adjust how tight or loose they would like to tune their linear...

The Rounded UltraHex Shaft is compatible with the REV ION System and allows teams to adapt the REV 5mm Hex Shaft family of products to 0.5in Hex applications. It can also be used as a coupler to extend 5mm Hex shafts. Rounded UltraHex...

The Stepped Bushing - 3/4in ID is compatible with the REV ION System. This bushing used in conjunction with the MAXSpline Shaft and Dead Axle Tube - 3/4in can be used to build robust and effective rollers and intakes. Specifications ...

Commonly included with our gearboxes and pinion options, the 8mm Keyed Shaft Retaining Hardware Pack is compatible with the REV ION System and includes the hardware needed to retain 2mm keyed elements to 8mm OD shafts without the bulk of alternative...

The ION Motor Mounting Blocks family offers two options for securely mounting motors and supporting extended shafts within robot mechanisms. Both versions use aluminum plates with integrated MAXSpline bores and bearing pockets, providing a consistent...

The 8mm Shaft Spacer is a stainless steel 1/16 inch washer designed for precise shaft spacing in FRC and FTC mechanisms. Used on the NEO 2.0 Brushless Motor to achieve correct input coupler alignment in MAXPlanetary assemblies, this spacer also fits any...

MAXSpline Shaft Collars provide mechanical retention for components mounted on MAXSpline Shaft and use a two piece aluminum clamping design for secure attachment. Both versions are black anodized for durability and integrate cleanly within the REV ION...

The Locking MAXHub - 1/2in Hex Kit is a compact, dual plate hub system designed to secure 1/2in hex shafting inside any MAXSpline bore component. Each kit includes two identical wedge locking plates and the necessary #10-32 hardware. When the plates are...

The Locking Shaft Collar MAXSpline is a compact, purpose built clamping solution for securing components to a MAXSpline shaft. Designed as a thin aluminum plate, it can be paired with a second collar or mounted directly to any MAXSpline wheel or sprocket...

The Vortex Shaft - 20DP Gear - 8T is compatible with the REV ION System and offers users the unique ability to achieve substantial gear reductions directly from the motor. This gear features a 8T 20DP design that is typically too small for an 8mm keyed...

The 15T Spline Shaft is a solid stainless steel shaft sized at 480mm for long span applications or to be used as stock to cut custom length shafts. Its 15 tooth involute spline profile features an 8mm outer diameter and interfaces with the REV ION...

The 15T Spline to 1/2in Hex Adapter provides a simple and reliable way to integrate motors with a 15T spline output shaft into mechanisms designed around 1/2in rounded hex. This adapter is ideal for teams looking to pair the NEO 2.0 Brushless Motor...

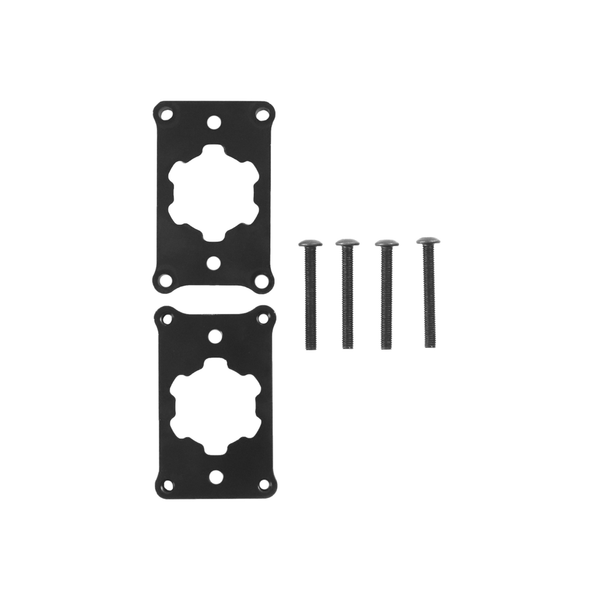

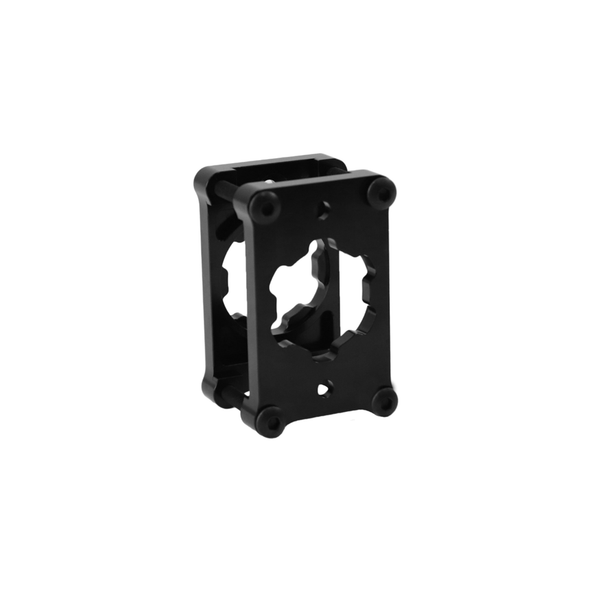

MAXSpline Bearing Blocks are compatible with the REV ION System. Quickly add bearing support to any location on REV ION extrusion without the need for precision machining. Can also be used in a west coast style drivetrain to add center wheel drop while...

MAXSpline Shaft Endcaps are compatible with the REV ION System and transform your MAXSpline Shaft extrusion into a live axle driven by a 1/2in Hex shaft. MAXSpline Shaft Endcaps come in two different materials: a durable plastic version and an upgraded...

#10-32 Ball Joint Rod Ends are compatible with the REV ION System. Right-hand threaded rod ends tighten when turned clockwise while left-handed threaded rod ends tighten when turned counterclockwise.  Specifications Type: Stud-type Rod...

The MAXSpline Shaft Bearing Block Kit and MAXSpline Bearings are compatible with the REV ION System and are perfect for using MAXSpline Shaft in a live axle application or any other similar sized rotational needs. Effortlessly mounting to REV's hole...

1/2in Hex Shaft Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. Specifications Material: POM (Acetal/Delrin) OD: 0.72in Weights & Dimensions: ...

The Elevator Bearing Blocks family offers reliable, versatile solutions for creating linear motion in elevator systems using MAXTube. Both the original Elevator Bearing Block and the Clamping Elevator Bearing Block provide teams with the flexibility to...

The 8mm Shaft Spacer is compatible with the REV ION System and is a convenient way to space pinions and gears along the shaft of the NEO Brushless Motor. The 8mm Shaft Spacer is bigger than the 1/2in Hex Adapter and can help keep...

#10-32 Shaft End Screw V1 and V2 are compatible with the REV ION System and are used to retain parts on any ION hex shaft instead of shaft collars. 1/2in Rounded Hex Shafts in various lengths are available and come tapped with #10-32 holes. The...

Bearings 15T Spline Bearing - Flanged - 1.125in OD - 4 Pack (REV-21-3294-PK4) Featuring a 8mm internal diameter and a 1.125in outer diameter, this bearing is designed to fit into a MAXSpline bore while supporting a 15T Spline shaft. The flange adds a way...

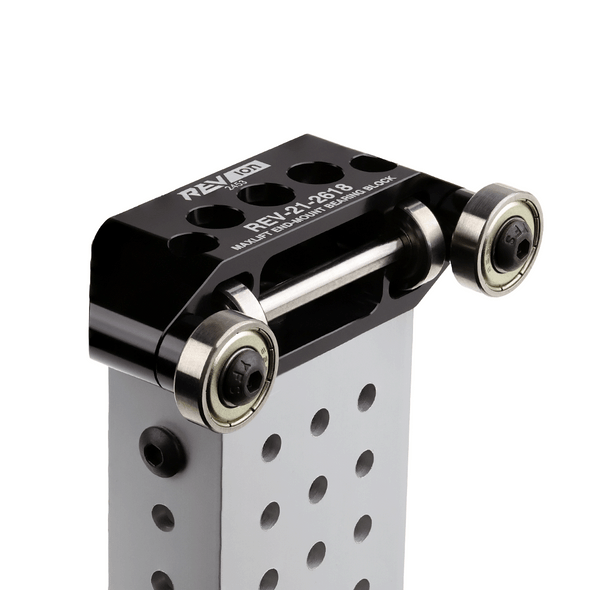

The MAXLift Bearing Blocks are integral components of the MAXLift system, providing teams with a robust and space-efficient solution for building high-performance elevator assemblies. With the main blocks being designed around billet aluminum...

The Vortex Shaft - 15T Spline, compatible with the REV ION System and gives users the ability to drive inputs that have a 8mm diameter involute 15T spline. Compatible with SplineXS shaft components. Featuring a 1/2in hex section that drives the shaft and...

The 1/2in Hex Bore Shaft Collars are used to prevent gears, sprockets, wheels, and other parts from sliding out of place on a 1/2in hex shaft. All REV 1/2in Hex Bore Shaft Collars feature a boss, or bump out, to contact the inner race of bearings that...

The Linear Actuator 2in Input Shaft is compatible with the REV ION System and enables the (REV-21-2735) Linear Actuator input to easily attach to various outputs like the (REV-25-2741) MAX 180 Degree Gearbox. The Linear Actuator 2in Input Shaft is...

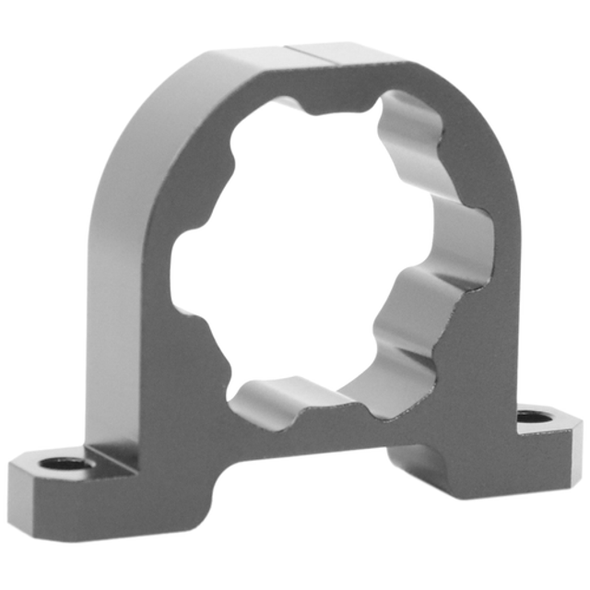

The MAXSpline Pillow Block is compatible with the REV ION System and allows for MAXSpline Shaft (REV-21-2520) to be rigidly mounted to any surface featuring a 2in mounting hole pattern. This enables easy attachment to rotating high torque...
