Motion

The NEO Vortex is a high-power, high-performance, and high-resolution sensored brushless motor that is compatible with the REV ION System. It features a dockable controller interface that can be mounted directly to the SPARK Flex Motor Controller or our...

The Vortex Shaft - MAXSwerve Integrated Key is compatible with the REV ION System and gives users the ability to drive a MAXSwerve Module without the need for the MAXSwerve Key. This eliminates a potential point of failure in the MAXSwerve since the key...

The Vortex Shaft - 20DP Gear - 7T is compatible with the REV ION System and offers users the unique ability to achieve substantial gear reductions directly from the motor. This gear features a 7T 20DP design that is typically too small for an 8mm keyed...

The Vortex Shaft - Falcon Compatible Spline is compatible with the REV ION System and gives users the ability to drive components that have a falcon spline bore. *Falcon is not a REV trademark. Featuring a 1/2in hex section that drives the shaft and a...

The 8mm Vortex Shaft, compatible with the REV ION System, empowers you to utilize the NEO Vortex Brushless Motor with any 8mm keyed shaft component. This interchangeability also means that the NEO Vortex matches the output of a NEO Brushless Motor V1.1,...

The Vortex MAXPlanetary Input Kit is compatible with the REV ION System and gives users the ability to mount a MAXPlanetary Gearbox directly to your NEO Vortex Brushless Motor and SPARK Flex Motor Controller. Working seamlessly with the MAXPlanetary...

The NEO Vortex Solo Adapter, allows teams to seamlessly integrate the NEO Vortex Brushless Motor with a SPARK MAX Motor Controller. This adapter breaks out the motor sensor connector and phase wire connections. While the NEO Vortex Solo Adapter allows...

The NEO 2.0 Brushless Motor builds on the proven performance of the original NEO, delivering the same high-efficiency brushless power in a refined package designed for easier integration and mounting. With updates to its shaft, encoder connection, and...

The 3in MAXSwerve Module is the smallest and lightest swerve module designed for FRC Teams. Leveraging many parts of the REV ION System, MAXSwerve aims to reduce the complexity traditionally associated with swerve drivetrains. The module features a 3in...

The MAXSpline Shaft - (REV-21-2520) is compatible with the REV ION System. The shaft is an extruded aluminum MAXSpline that provides a high strength alternative to 1/2in hex shaft that can interface with any REV ION System components with a...

An individual cartridge for the MAXPlanetary System. This cartridge is a 9:1 gear reduction.With a 9:1 reduction in a single stage cartridge you will save significant space and weight in your builds that demand the higher reduction!The MAXPlanetary...

The 2 Motor Gearbox - Through Bore is compatible with the REV ION System. This two motor into one output gearbox allows the user to adjust the gear ratio by changing pinion and cluster gear (12:60, 18:54, 24:48, or 36:36). The output shaft is 1/2in...

Designed for use with the REV ION System and with an efficient right-angle configuration, the MAX 90 Degree Gearbox offers a robust and high-performance solution to building a more compact robot. Connect the MAX 90 Degree Gearbox to the MAXPlanetary...

ION #25 Sprockets are compatible with the REV ION System and designed for use with #25 Roller chain. #25 Plate Sprockets: Featuring MAXSpline and a 2in bolt circle that patterns outward radially, allowing for bolting to structure easily. #25 Hub...

20DP Gears are compatible with the REV ION System and come in a wide range of sizes and bores. Larger gears feature #10 clearance holes arranged in a 2-inch bolt circle pattern and MAXTube mounting pattern. A notch on the bore provides an easy...

20DP Gears are compatible with the REV ION System and come in a wide range of sizes and bores. Larger gears feature #10 clearance holes arranged in a 2-inch bolt circle pattern. A notch on the bore provides an easy visual indicator to ensure gears on the...

The REV UltraPlanetary Gearbox Kit is the entry point into using the REV UltraPlanetary System. The kit comes with UltraPlanetary Cartridges to support six different final gear reductions ranging from nominally 3:1 to 60:1 allowing for the right amount...

MAXSpline Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. The MAXSpline Spacer with MAX Pattern features a 2in bolt circle pattern.  Specifications...

ION Grip Wheels are compatible with the REV ION System and come in a wide range of sizes, durometers, and bores. Larger wheels contain the MAXSpline bore, but can be adapted to other bores with a separate MAXHub. Wheels with spokes have a bolt...

ION Traction Wheels are compatible with the REV ION System and come in a wide range of sizes, durometers, and bores. Larger wheels contain the MAXSpline bore, but can be adapted to other bores with a separate MAXHub. Wheels with spokes have a bolt circle...

ION Omni Wheels are compatible with the REV ION System and come in a wide range of sizes, all featuring the MAXSpline bore. Other bores are possible with a separate MAXHub. Rollers for each wheel size are unique, which ensures perfectly circular wheels...

ION Compliant Wheels are compatible with the REV ION System and come in a wide range of sizes, durometers, and bores. Larger wheels contain the MAXSpline bore, but can be adapted to other bores with a separate MAXHub. The radial spoke profile allows for...

MAXSpline Spacers are compatible with the REV ION System and can be used on the shaft as a spacer; they also work as spacers between wheels and sprockets, etc. Specifications Material: POM (Acetal/Delrin) OD: 1.50in Weights & Dimensions: ...

#10 Spacers are compatible with the REV ION System and are an accurate way to space structural components like plates, brackets, or tubes apart on #10 screws. Can also be used to to space motion components like gearboxes away from their mounting...

1/2in Rounded Hex Shafts are compatible with the REV ION System and are a ready-to-use length of hex shaft that have been cut to length and have the ends tapped. The ends are tapped #10-32 in order to accept a screw and washer or shaft collar. The 1/2in...

#10-32 Standoffs are compatible with the REV ION System and provide spacing for mounting key items on your robot. These standoffs are tapped on each end for a #10-32 thread and have a 3/8in flat to flat dimension, similar to a #10-32 nut. Specifications ...

Experience a significantly longer lifespan with the 3in MAXSwerve Plastic Wheel V2.0, designed for the 3in MAXSwerve Module. Now crafted from Glass-Filled Polypropylene & TPR, it boasts a more rigid rubber tread for increased durability without...

An individual cartridge for the MAXPlanetary System. This cartridge is a 5:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

An individual cartridge for the MAXPlanetary System. This cartridge is a 4:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

An individual cartridge for the MAXPlanetary System. This cartridge is a 3:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

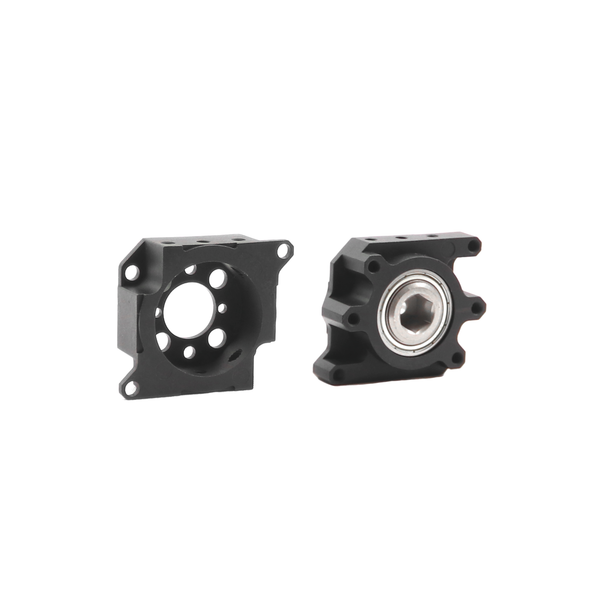

The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been carefully optimized to provide torque density unavailable in FRC up until now. The...

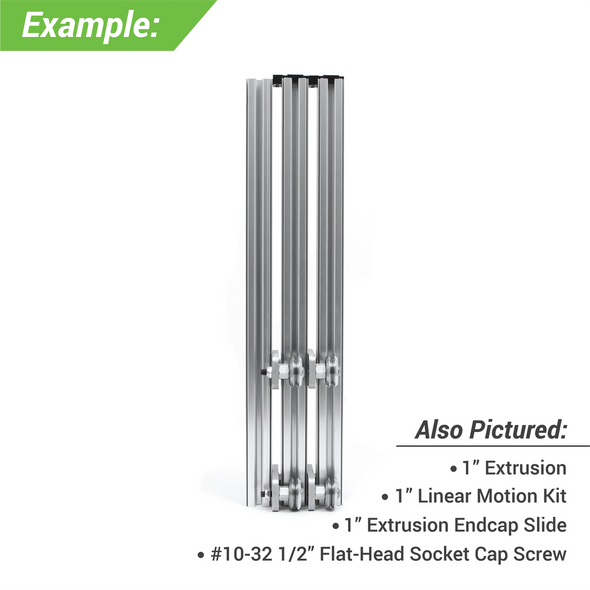

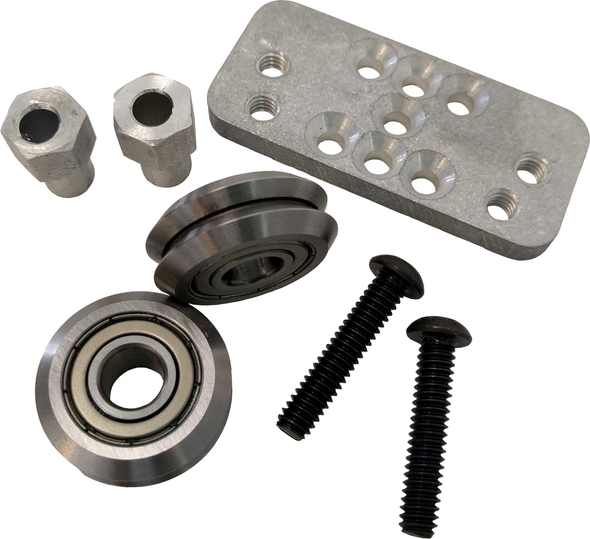

For use with the ION Build System 1in Extrusion to create linear motion.   Kit Contents QTY 1 - REV-21-1032 - Dual Bearing Plate QTY 1 - REV-21-1029 - Eccentric Bushing QTY 1 - REV-21-1030 - Concentric Bushing QTY 2 -...

The 2 Motor Drivetrain Gearbox - Through Bore is compatible with the REV ION System and can be mounted in a variety of options, including flush with tube or spaced away from the tube to enable both chain in tube and chain/belt outside tube designs...

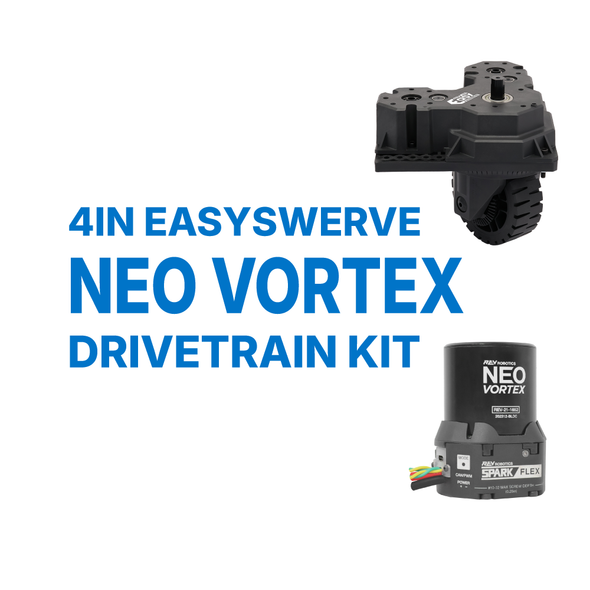

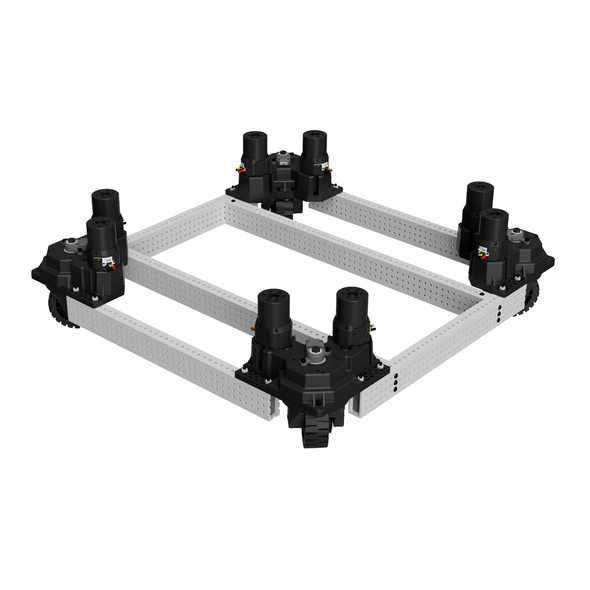

The 4in EasySwerve Drivetrain Kit with NEO Vortex motors is a complete solution for building a high-performance REV ION drivetrain base, combining the control of swerve with the flexibility of MAXTube. It includes four 4in EasySwerve Modules powered by...

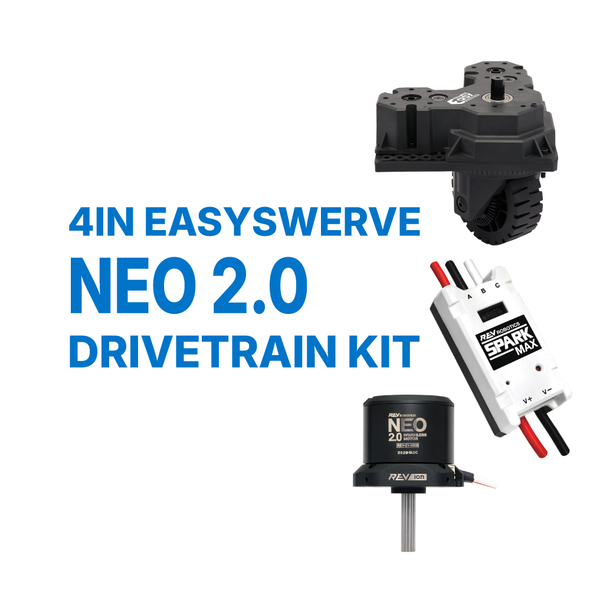

The 4in EasySwerve Drivetrain Kit with NEO 2.0 motors is a complete solution for building a compact and capable REV ION drivetrain base, combining the control of swerve with the flexibility of MAXTube. It includes four 4in EasySwerve Modules powered by...

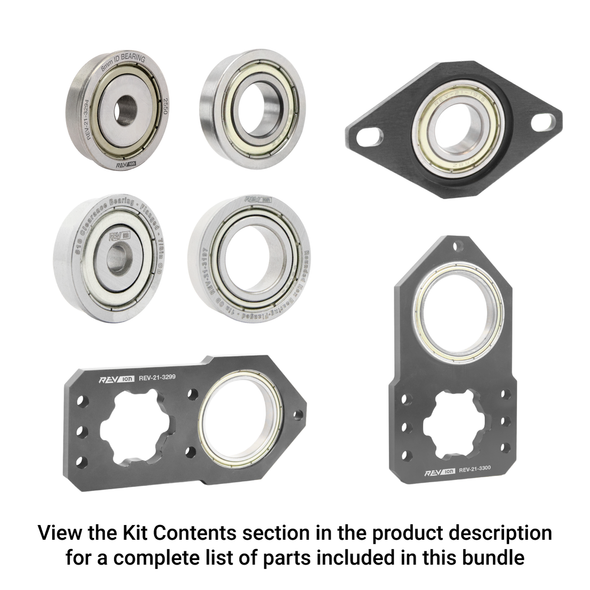

The ION Bearing Bundle brings together the most-used bearings and bearing blocks in the ION Build System so you can spend less time sourcing parts and more time building. From high-speed shooters to rugged drivetrains to MAXSpline-based arms and pivots,...

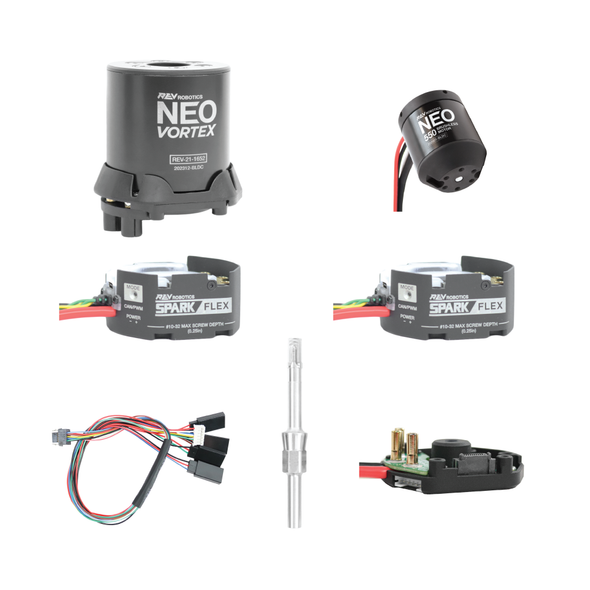

Upgrade your 3in MAXSwerve Module with this high-performance motor and controller package, featuring the latest NEO Vortex Brushless Motor and SPARK Flex Motor Controllers. Created for maximum efficiency and advanced control, this bundle is perfect for...

Power your 3in MAXSwerve Module with this proven motor and controller setup, featuring the NEO Brushless Motor and SPARK MAX Motor Controllers. Designed to work seamlessly with the 3in MAXSwerve Module, this bundle delivers reliable performance and...

The Bearing Retaining Plate is compatible with the REV ION System and is designed to securely hold bearings in place, ensuring that they remain stable and aligned during use. Made from high-quality, durable materials, the Bearing...

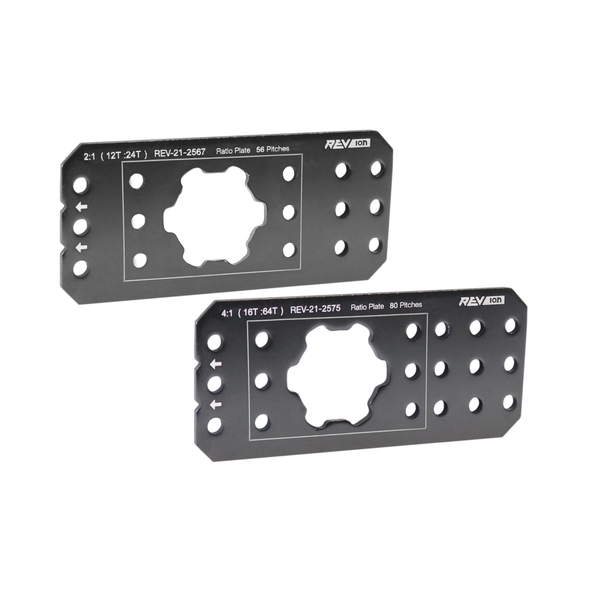

Ratio Plates are compatible with the REV ION System. When you need a ratio other than 1:1, Ratio Plates make it easy to position sprockets and pulleys at the perfect center-to-center distance for the given ratio and length of #25 chain or RT25 belt...
