Gearboxes

The 3in MAXSwerve Module is the smallest and lightest swerve module designed for FRC Teams. Leveraging many parts of the REV ION System, MAXSwerve aims to reduce the complexity traditionally associated with swerve drivetrains. The module features a 3in...

An individual cartridge for the MAXPlanetary System. This cartridge is a 9:1 gear reduction.With a 9:1 reduction in a single stage cartridge you will save significant space and weight in your builds that demand the higher reduction!The MAXPlanetary...

The 2 Motor Gearbox - Through Bore is compatible with the REV ION System. This two motor into one output gearbox allows the user to adjust the gear ratio by changing pinion and cluster gear (12:60, 18:54, 24:48, or 36:36). The output shaft is 1/2in...

Designed for use with the REV ION System and with an efficient right-angle configuration, the MAX 90 Degree Gearbox offers a robust and high-performance solution to building a more compact robot. Connect the MAX 90 Degree Gearbox to the MAXPlanetary...

The MAXPlanetary Base Kit (REV-25-2109) is the entry point into using the MAXPlanetary System. This base kit includes a universal input stage, 1/2in hex socket output, hardware pack, 8mm keyed input coupler kit, and a 1/2in rounded hex shaft. Purchase a...

The REV UltraPlanetary Gearbox Kit is the entry point into using the REV UltraPlanetary System. The kit comes with UltraPlanetary Cartridges to support six different final gear reductions ranging from nominally 3:1 to 60:1 allowing for the right amount...

An individual cartridge for the MAXPlanetary System. This cartridge is a 5:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

An individual cartridge for the MAXPlanetary System. This cartridge is a 4:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

An individual cartridge for the MAXPlanetary System. This cartridge is a 3:1 gear reduction. The MAXPlanetary System is a cartridge-based modular planetary gearbox designed from the ground up for NEO-class motors. The design of the MAXPlanetary has been...

The MAXPlanetary Universal Input Stage V2 is a redesigned mounting solution for integrating a wide range of FRC motors into the MAXPlanetary System. Built as the next evolution of the original universal input stage, V2 enhances strength, expands motor...

The MAXPlanetary MAXSpline Output Coupler [REV-21-3630] provides a compact and reliable way to interface a MAXPlanetary Gearbox’s 1/2 inch hex output with MAXSpline Shaft systems. Designed for teams who want the packaging efficiency of a...

These MAXPlanetary Input Couplers are compatible with the REV ION System. The MAXPlanetary 1/2in Hex Input Coupler (REV-21-2110) attaches to the end of a hex shaft, securely held in place by a screw, enabling the MAXPlanetary to be powered by a hex shaft...

The 550 Motor Pinions are used for transferring power from a 550 class motor, like the HD Hex Motor or NEO 550, to a mechanism. These pinions come in four different types. The 32DP pinion gear is compatible with 32DP gears,the UltraPlanetary Pinion is...

The MAXPlanetary Kraken X44 & Minion Input Kit is a comprehensive solution for adapting Kraken X44 or Minion motors to the MAXPlanetary system. This kit includes the [REV-21-4444] MAXPlanetary Kraken X44 & Minion Adapter Plate, designed with...

The UltraPlanetary 550 Motor Plate works with the REV HD Hex Motor, REV NEO 550 Brushless Motor, and other 550 class motors.  Specifications Module: 0.55 Pressure Angle: 20° Materials: Sintered Steel Weight: 33.5 g (0.074...

The REV UltraPlanetary Female 5mm Output V2 is the output stage of the REV UltraPlanetary system. With two different ways to transfer power, the output stage allows designers to choose the option best suited for the application. The V2 version of the...

The UltraPlanetary 1/2in Hex Adapter is designed to face mount to the UltraPlanetary gearbox and provide a convenient 1/2in hex output shaft that is commonly used in the FIRST Robotics Competition. The recommended hardware for mounting the...

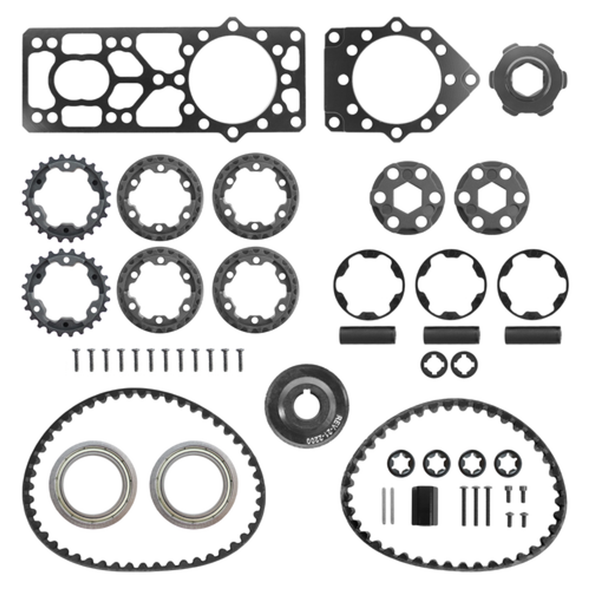

The MAX 180 Degree Gearbox is compatible with the REV ION System and is designed to give you extra flexibility in your robot construction. Engineered to let you flip your motor 180 degrees to the output, optimizing space for tighter packaging. This...

The Linear Actuator - 12in Stroke is compatible with the REV ION System. This electric linear actuator aligns seamlessly with FRC-legal motors and gearboxes while adhering to FRC hardware and mounting standards. Designed for adaptability, this...

With an efficient right-angle configuration, the Ultra 90 Degree Gearbox offers a robust solution to building a more compact robot. The Ultra 90 Degree Gearbox allows you to connect the UltraPlanetary Gearbox and the HD Hex Motor (REV-41-1600)...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 5:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 4:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 3:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...

The 2 Motor Drivetrain Gearbox - Through Bore Bundle contains the REV-21-2190 base kit, the 20DP Gears needed for a 6in wheel ratio, and 20DP NEO Pinions Gears (10T, 11T, 12T) for multiple speed options. If a 4in or 5in wheel gear ratio is needed,...

This product is a 6:1 Ratio Gear Bundle for the 2 Motor Gearbox - Through Bore. Purchasing a Base Kit and Ratio Gear Bundle are both required to assemble a full gearbox, visit the 2 Motor Gearbox - Through Bore (REV-21-2099) page to learn...

This product is a 5:1 Ratio Gear Bundle for the 2 Motor Gearbox - Through Bore. Purchasing a Base Kit and Ratio Gear Bundle are both required to assemble a full gearbox, visit the 2 Motor Gearbox - Through Bore (REV-21-2099) page to learn...

This product is a 3:1 Ratio Gear Bundle for the 2 Motor Gearbox - Through Bore. Purchasing a Base Kit and Ratio Gear Bundle are both required to assemble a full gearbox, visit the 2 Motor Gearbox - Through Bore (REV-21-2099) page to learn...

This product is a 2:1 Ratio Gear Bundle for the 2 Motor Gearbox - Through Bore. Purchasing a Base Kit and Ratio Gear Bundle are both required to assemble a full gearbox, visit the 2 Motor Gearbox - Through Bore (REV-21-2099) page to learn...

This product is a 1:1 Ratio Gear Bundle for the 2 Motor Gearbox - Through Bore. Purchasing a Base Kit and Ratio Gear Bundle are both required to assemble a full gearbox, visit the 2 Motor Gearbox - Through Bore (REV-21-2099) page to learn...

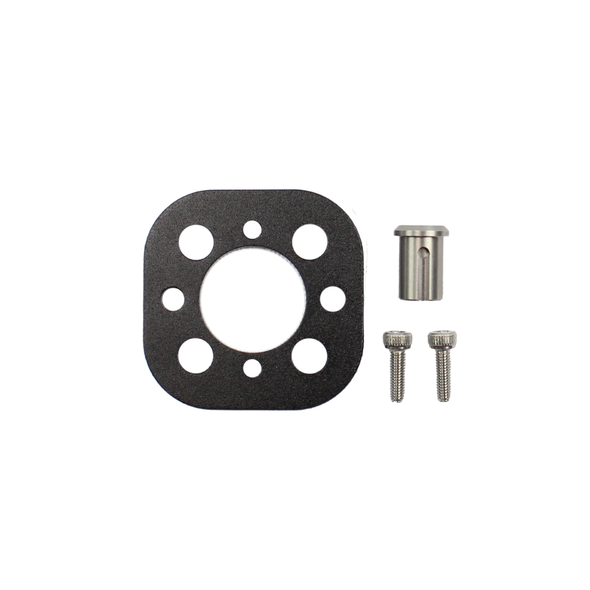

The MAXPlanetary 550 Input Kit gives users the ability to use 550 size motors with the MAXPlanetary System.  Features Does not require permanent modifications to the motor Press-fit shaft adapter avoids set screws that can come...

The MAXPlanetary 775 Input Kit gives users the ability to use 775 size motors (775pro or AM RedLine) with the MAXPlanetary System. Features Does not require permanent modifications to the motor Press-fit shaft adapter avoids set screws that...
