The MAXPlanetary Double Motor Adapter seamlessly integrates with the REV ION Build System, enabling the side-by-side mounting of MAXPlanetaries, UltraPlanetaries, or SPARK Flex/NEO Vortex combos onto MAXTube - 2x1 with MAX Pattern. This compact solution...

#35 Connecting Links are compatible with the REV ION System and are design for use with #35 Roller Chain. Use a #35 Connecting Link to connect two ends of chain to create a loop. Specifications Material: Steel Size: #35 Pitch: 0...

#35 Roller Chain is compatible with the REV ION System. This product is a single strand of #35 Roller Chain for use with ION #35 Sprockets. Use a #35 Connecting Link to connect two ends of chain to create a loop. Specifications Material:...

The #35 Chain Turnbuckle is compatible with the REV ION System. It is designed to adjust the length of a #35 Roller Chain by replacing a few links in a run and also allows the user to tension the chain by adjusting the turnbuckle. The...

The Ballast Block - 3in x 2in x 1in is a steel weight block weighing 1.42 pounds (643g), designed for easy integration with the ION Build System. It features a staggered hole pattern with twenty (20) #10-32 counterbored through holes and twenty (20)...

The Vortex Shaft - 15T Spline, compatible with the REV ION System and gives users the ability to drive inputs that have a 8mm diameter involute 15T spline. Compatible with SplineXS shaft components. Featuring a 1/2in hex section that drives the shaft and...

The 1/2in Hex Bore Shaft Collars are used to prevent gears, sprockets, wheels, and other parts from sliding out of place on a 1/2in hex shaft. All REV 1/2in Hex Bore Shaft Collars feature a boss, or bump out, to contact the inner race of bearings that...

MAXTube is compatible with the REV ION System and is a strong extruded aluminum tubing that features various hole patterns that make robot structures easier to build. Hole patterns range from simple #10 clearance hole grid patterns to a repeated MAX...

MAXTube 2x1 is durable, extruded aluminum tubing optimized for robot structures and fully compatible with the REV ION System. It features #10 clearance holes spaced 0.5 inches apart on all 1-inch sides and offers multiple configurations: solid, grid...

MAXTube 1x1 is a versatile, extruded aluminum tubing designed for building strong, reliable robot structures. Fully compatible with the REV ION System, it features #10 clearance holes spaced 0.5 inches apart on all four sides, simplifying design and...

MAXTube is compatible with the REV ION System and is a strong extruded aluminum tubing that features various hole patterns that make robot structures easier to build. Hole patterns range from simple #10 clearance hole grid patterns to a repeated MAX...

The West Coast Drivetrain Kit offers a complete solution for building a robust and efficient differential drive base. Utilizing the classic West Coast drive style, this kit features a six-wheel cantilevered design with live axles and center wheels...

REV has introduced MAXComposite in two thickness options, making this high performance material accessible to everyone. MAXComposite is designed for applications requiring strength, impact resistance, and abrasion resistance, all while being 25% lighter...

The Linear Actuator 2in Input Shaft is compatible with the REV ION System and enables the (REV-21-2735) Linear Actuator input to easily attach to various outputs like the (REV-25-2741) MAX 180 Degree Gearbox. The Linear Actuator 2in Input Shaft is...

The 3in MAXSwerve Drivetrain Kit is a complete solution for building a high-performance REV ION drivetrain base, offering the unparalleled control of swerve and the flexibility of MAXTube. It includes four 3in MAXSwerve Modules for a compact and...

Polycarbonate Sheet offers an ideal solution for lightweight, durable, and customizable components. With five(5) 1mm thick sheets measuring 400mm x 350mm, this versatile material is perfect for crafting sponsor panels, branding graphics, intake...

The REV Servo Hub is compatible with both the REV ION and REV DUO systems. Over a single communication interface it can provide advanced control of up to six (6) servos. This means that the Servo Hub needs no additional PWM cabling between it and your...

The MAXSpline Pillow Block is compatible with the REV ION System and allows for MAXSpline Shaft (REV-21-2520) to be rigidly mounted to any surface featuring a 2in mounting hole pattern. This enables easy attachment to rotating high torque...

The Differential Drivetrain Bumper Bracket Kit is compatible with the REV ION System and is designed to be a quick and convenient way to install FRC legal bumpers on the REV ION West Coast Drivetrain or even an AM14U based drivetrain with...

Designed for teams requiring higher load capacity in chain-driven systems, the ION #35 Sprockets come in three versatile options, each compatible with the REV ION Build System: #35 Hub Sprockets - 1/2in Hex: Featuring a 1/2in hex bore (rounded for the...

The 9-Axis IMU, compatible with the REV DUO System, is a high-performance inertial measurement unit (IMU) featuring the Bosch BNO055 smart sensor with an integrated accelerometer, gyroscope, and magnetometer. Developed to be plug and play with the REV...

Safely ground your robot's metal frame with this Resistive Grounding Strap. This strap has a built in 470Ω resistor to prevent high-current discharges while still minimizing the difference in charge between the robot electronics and the frame...

The DUO EDU Mechanical Kit is specifically created to implement hands-on STEM projects in the classroom. The DUO EDU Mechanical Kit is the result of over 50 years of experience with competitive robotics with feedback from educators across the world. Pair...

The SPARK Flex Data Port Pigtail Cable breaks out the SPARK Flex Data Port to individual unterminated wires and is useful for connecting custom circuits or sensors without a standard connector. It features the keyed and locking Data Port connector to...

The SPARK Flex Data Port Breakout Cable breaks out the default pin functions of the SPARK Flex Data Port into commonly used connectors for external sensors. The keyed and locking Data Port connector ensures a secure and aligned fit when plugged into the...

Mounting your SPARK MAX Motor Controller (REV-11-2158) has never been easier with the help of the SPARK MAX Mounting Bracket. Configured with a hole pattern compatible with a 1/2in grid and allowing the mode and status light to be seen, this...

This update to the SPARK CAN Cable bridges the H and L CAN signals together within the cable itself. This prevents the CAN Bus breaking in the event of a cable disconnecting from a SPARK MAX Motor Controller. These SPARK CAN cables have a JST-PH 4-pin...

This is all of the hardware included in the UltraPlanetary Gearbox Kit & HD Hex Motor (REV-41-1600) Kit Contents QTY 6 - M3x40mm QTY 6 - M3x30mm QTY 6 - M3x20mm QTY 6 - M3x10mm QTY 2 - M3x8mm Button head QTY 2 - M3x6mm Set...

The UltraPlanetary 550 Motor Plate works with the REV HD Hex Motor, REV NEO 550 Brushless Motor, and other 550 class motors.  Specifications Module: 0.55 Pressure Angle: 20° Materials: Sintered Steel Weight: 33.5 g (0.074...

The REV UltraPlanetary Female 5mm Output V2 is the output stage of the REV UltraPlanetary system. With two different ways to transfer power, the output stage allows designers to choose the option best suited for the application. The V2 version of the...

The UltraPlanetary 1/2in Hex Adapter is designed to face mount to the UltraPlanetary gearbox and provide a convenient 1/2in hex output shaft that is commonly used in the FIRST Robotics Competition. The recommended hardware for mounting the...

These Low Profile Nylon Lock Nuts are thin enough to fit inside the channel of the ION 1in Extrusion. The embedded nylon ring provides tight vibration resistant hold on the threads of the screw. Specifications Material: Zinc-plated Steel Diameter &...

The 8mm Shaft Spacer is compatible with the REV ION System and is a convenient way to space pinions and gears along the shaft of the NEO Brushless Motor. The 8mm Shaft Spacer is bigger than the 1/2in Hex Adapter and can help keep...

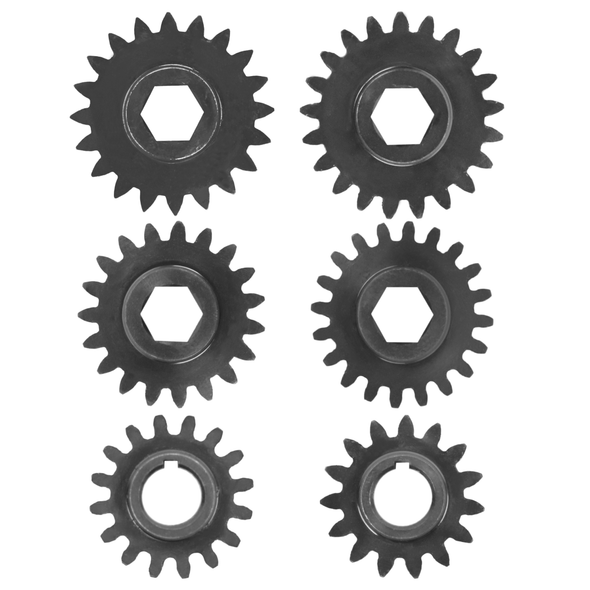

The Gear Ratio Upgrade Kit is compatible with the REV ION System and works with the 3in MAXSwerve Module and comes with two additional motor pinions and four additional spur gears that create five new extra high speed ratios to make your drive faster and...

The MAX 180 Degree Gearbox is compatible with the REV ION System and is designed to give you extra flexibility in your robot construction. Engineered to let you flip your motor 180 degrees to the output, optimizing space for tighter packaging. This...

The Linear Actuator - 12in Stroke is compatible with the REV ION System. This electric linear actuator aligns seamlessly with FRC-legal motors and gearboxes while adhering to FRC hardware and mounting standards. Designed for adaptability, this...

With an efficient right-angle configuration, the Ultra 90 Degree Gearbox offers a robust solution to building a more compact robot. The Ultra 90 Degree Gearbox allows you to connect the UltraPlanetary Gearbox and the HD Hex Motor (REV-41-1600)...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 5:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 4:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...

An individual cartridge for the UltraPlanetary System. This cartridge is nominally a 3:1 gear reduction. The UltraPlanetary System is a cartridge based modular gearbox designed to handle the rigors of the competition and the classroom. Building on the...
